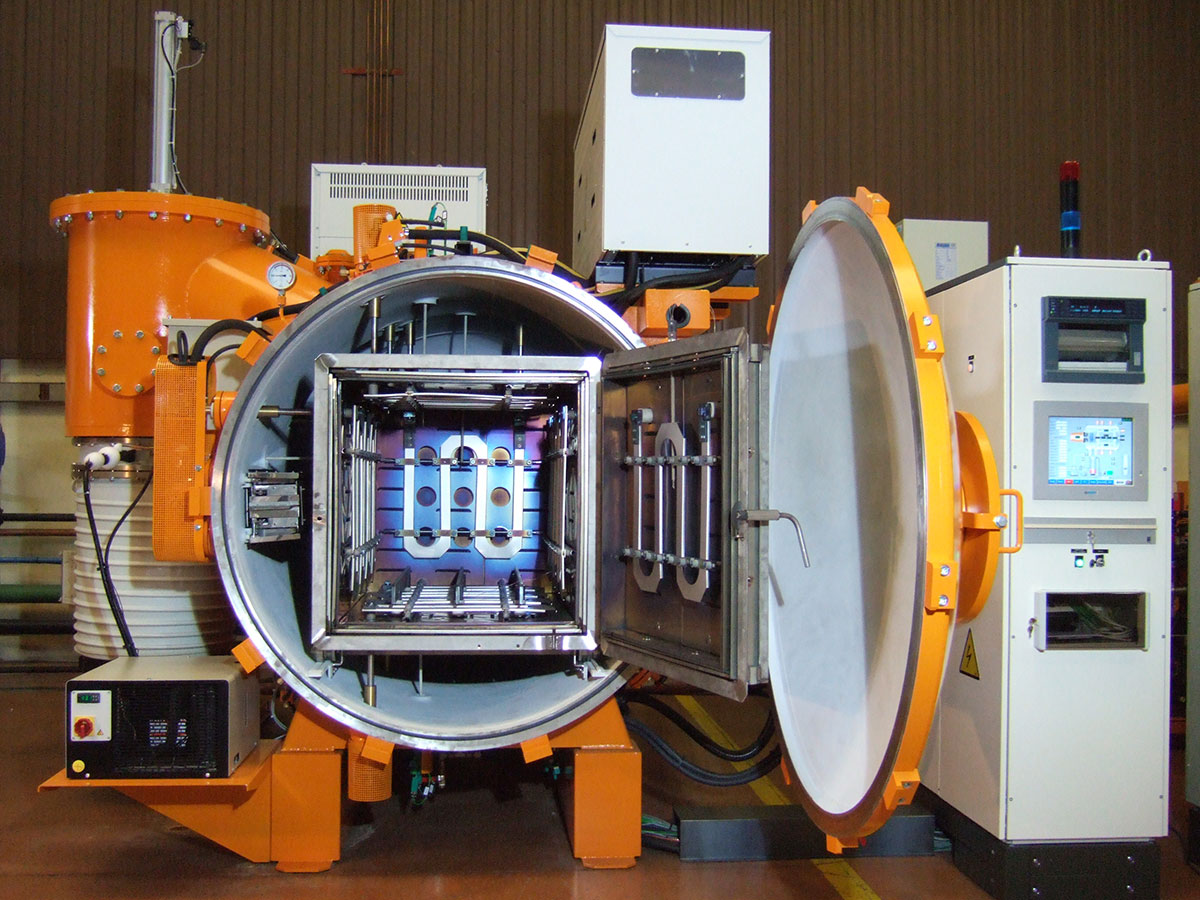

The BMI vacuum furnaces of the BA5_ family are specifically designed to meet the requirements of aluminum brazing under vacuum conditions.
These furnaces have complete metal insulation with a low degassing rate, full-size pumping units to ensure the high vacuum level required for aluminum brazing and 6 heating zones to guarantee a thermal homogeneity of +/-3°C.
The BA5_ vacuum furnaces are particularly well suited for the brazing of heat exchangers (honeycombs, plates, exchanges, etc.), sub-units for aeronautics and aerospace engineering (waveguides, etc.).
These fully automatic installations enable perfect reproducibility of results.
Technical Details
450 x 450 x 600 mm – 1000 x 1000 x 2500 mm
150 – 800 kg
Metal insulation
10-6 mbar
Max 700°C
GRAPHTIL® man-machine interface
Cooling pressure 1,2 bar abs
Heat Treatment Processes
- Annealing
- Ageing
- Stress relieving
- Aluminum brazing
- Special alloy degassing
